Pompes de transfert de carburant AC

Yoilp1224BT-16

• 60L/MIN,230V/50Hz • 2800RPM • 1"BSP,3BAR • 350W,3A • 7.5KGS • 1/CTN 8.5/7.5KGS 20X36X27CM

  • 技术参数
  • 详细描述
    • Nom d'article: Pompes de transfert de carburant AC
    • Numéro d'article: D-B001
    • 产品型号: Yoilp1224BT-16
    • 参数: • 60L/MIN,230V/50Hz • 2800RPM • 1"BSP,3BAR • 350W,3A • 7.5KGS • 1/CTN 8.5/7.5KGS 20X36X27CM

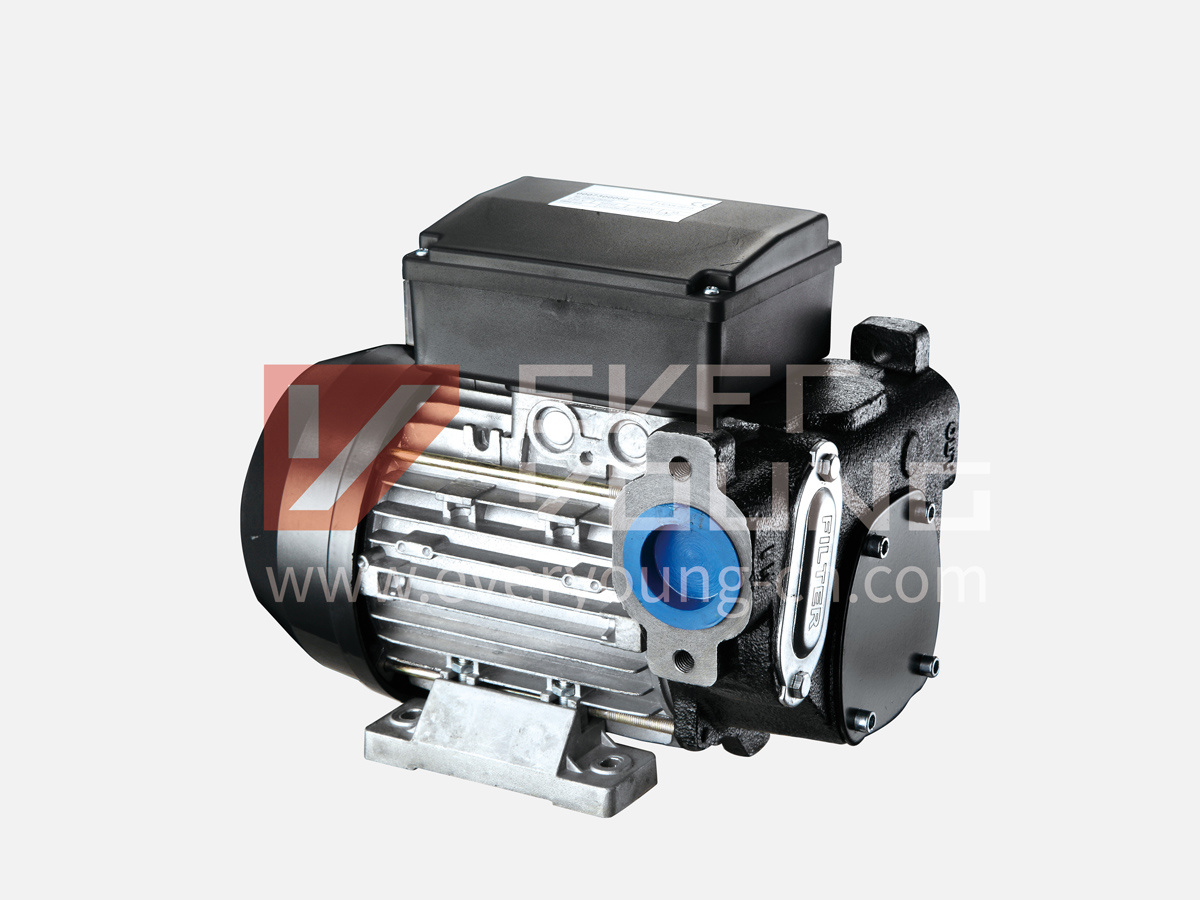

    AC DIESEL PUMP

    These self-priming rotary vane pumps feature a mechanical seal that guarantees constant reliability, even in low temperatures. Compact, safe and dependable, they can be used for equipping fuel pumps and stationary fuel-transfer installations.



    Technical Features

    • Cast-iron pump casing, treated against corrosion and paint-finished.
    • Vane pump with sintered steel rotor and acetalic resin blades.
    • Mechanical seal.
    • Bypass valve built into pump casing.
    • In-built 100-micron filter, easily accessible for cleaning.
    • Induction motor with aluminium casing.
    • Grade of protection: IP 55.
    • Continuous running.

    1

AC DIESEL PUMP

These self-priming rotary vane pumps feature a mechanical seal that guarantees constant reliability, even in low temperatures. Compact, safe and dependable, they can be used for equipping fuel pumps and stationary fuel-transfer installations.



Technical Features

• Cast-iron pump casing, treated against corrosion and paint-finished.
• Vane pump with sintered steel rotor and acetalic resin blades.
• Mechanical seal.
• Bypass valve built into pump casing.
• In-built 100-micron filter, easily accessible for cleaning.
• Induction motor with aluminium casing.
• Grade of protection: IP 55.
• Continuous running.

1
