Débitmètre à palettes rotatives série FMC PD
YPUMP-FMC-100
|
Model |
YPUMP-FMC-100 |
|
Size |
100mm / 4" |
|
Flow Rate Range |
150-1500L/min |
|
Max. Working Pressure |
10Bar/150PSI |
|
Accuracy |
±0.2% |
|
Repeatability |
≤0.07% |
|
Dimension |
83X46X65cm |
|
Net Weight |
80kgs |
|
Gross Weight |
96kgs |
|
Package |
1pc/WOODEN CASE |
- 技术参数
- 详细描述
-
- Nom d'article: Débitmètre à palettes rotatives série FMC PD
- Numéro d'article: K-A010
- 产品型号: YPUMP-FMC-100
- 参数:

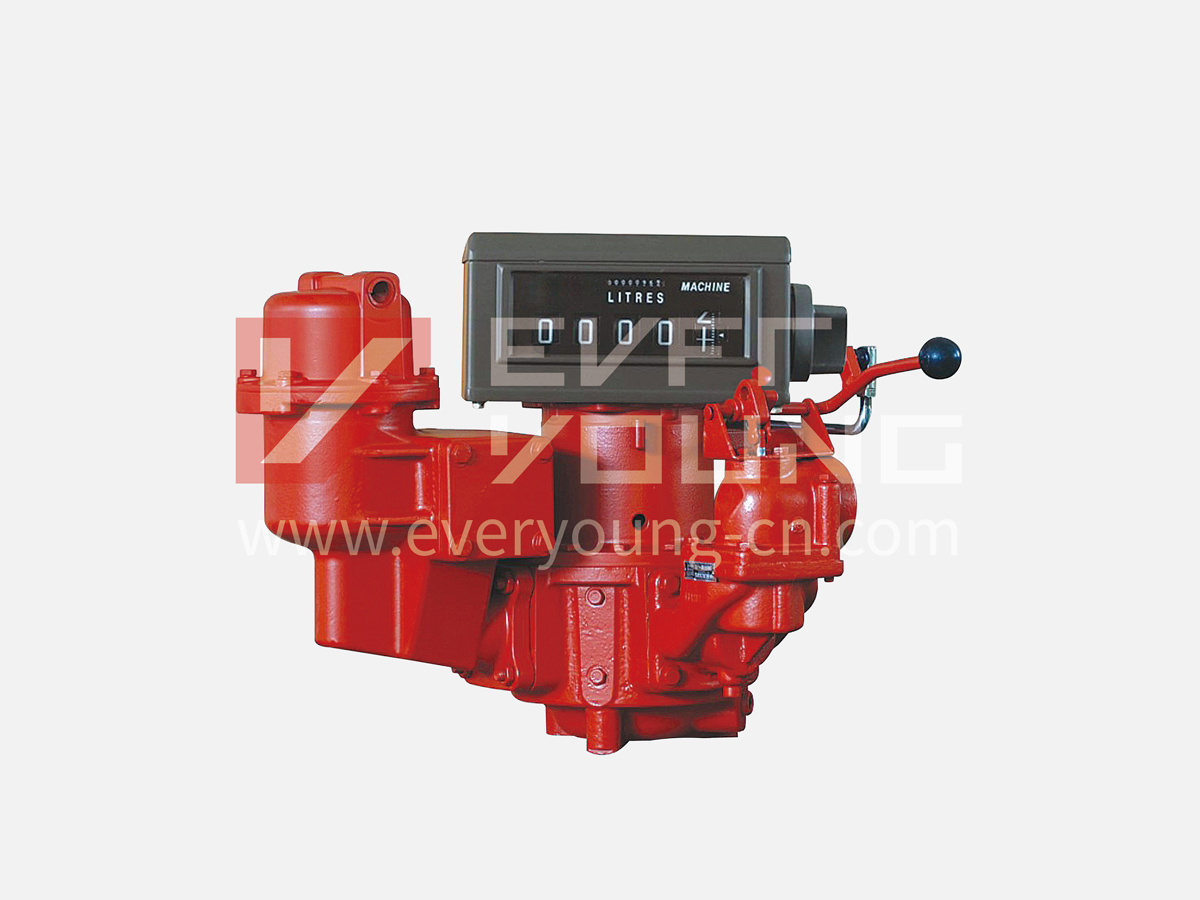

FMC Series PD Rotary Vane Flow Meter
Advantage:
• FMC series PD rotary vane meters are single case, angle-type, rotary vane, positive displacement meters.
• Superior accuracy and a wide range of products from gasoline to kerosene to fuel oils can be metered.
• Compact, versatile design can be readily fit into nearly all installations.
• Low pressure drop meter results in low meter slippage and thus superior meter accuracy.
• Long service life, low friction ball bearings, fixed cam-type timing, and rugged construction give sustained accuracy and long time operation.Application
Application includes: batching, dispensing, inventory control, and custody transfer of oils, solvents, chemicals, paints, fats and fertilizer.
-
Model
YPUMP-FMC-100
Size
100mm / 4"
Flow Rate Range
150-1500L/min
Max. Working Pressure
10Bar/150PSI
Accuracy
±0.2%
Repeatability
≤0.07%
Dimension
83X46X65cm
Net Weight
80kgs
Gross Weight
96kgs
Package
1pc/WOODEN CASE
FMC Series PD Rotary Vane Flow Meter
Advantage:
• FMC series PD rotary vane meters are single case, angle-type, rotary vane, positive displacement meters.
• Superior accuracy and a wide range of products from gasoline to kerosene to fuel oils can be metered.
• Compact, versatile design can be readily fit into nearly all installations.
• Low pressure drop meter results in low meter slippage and thus superior meter accuracy.
• Long service life, low friction ball bearings, fixed cam-type timing, and rugged construction give sustained accuracy and long time operation.
Application
Application includes: batching, dispensing, inventory control, and custody transfer of oils, solvents, chemicals, paints, fats and fertilizer.
