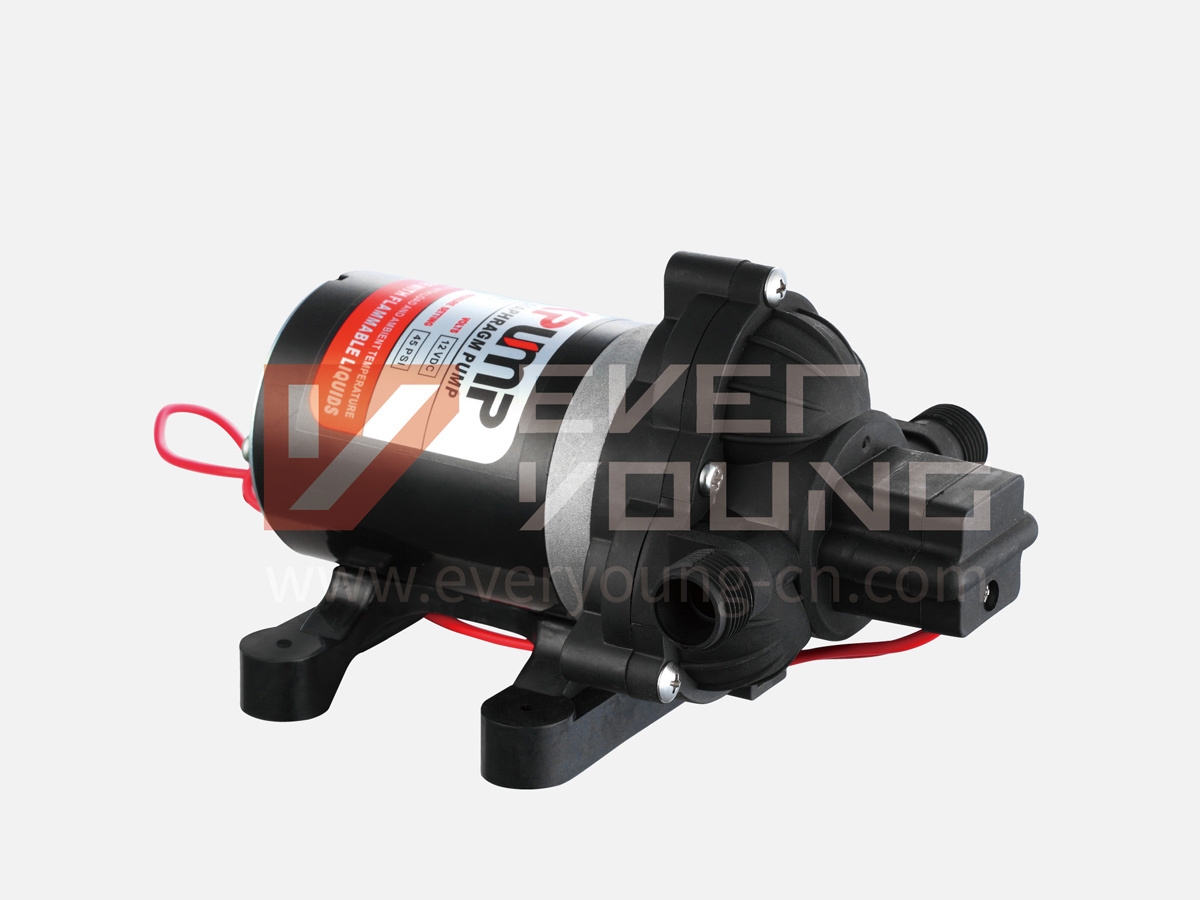

Pompe à membrane
YPUMP-DP3312/3324
|
Model |
Volt |
Flow (Ipm/gpm) |
Pressure off (psi/bar) |
Amp draw (A) |
Max draw (A) |
Packing size (mm) |
N.W/G.W (kg) |
|
YPUMP-DP3312 |
12V |
13.2/3.5 |
45/3.1 |
3.5 |
7.0 |
260*140*125 |
1.8/2.1 |
|
YPUMP-DP3324 |
24V |
13.2/3.5 |
45/3.1 |
1.8 |
4.0 |
260*140*125 |
1.8/2.1 |
- 技术参数
- 详细描述
-
- Nom d'article: Pompe à membrane
- Numéro d'article: E-B004
- 产品型号: YPUMP-DP3312/3324
Electric sprayer pumps feature durable, thermally protected motors and a sealless design that helps eliminate troublesome shaft seals and potential leakage into the motor. industrial and agricultural sprayer pumps to help apply insecticides and herbicides, pumps designed for carpet cleaning sprayers and more.
Rely on EVERYOUNG when you need the power and protection of high-quality electric sprayer pumps.WATER PRESSURE SYSTEM PUMP
Applicalion:
• Yacht / RV/Caravan pressurized water system,
• Sprayer fixtures (Vehicle-mounted sprayers, electric sprayer)
• Clean machine, Humidifier, Water purification, Medical apparatus
• Food beverage filling & liquid transfer,
• Any other pressurization system
Functions:
• Motor Voltage: 12/24V DC
• Max Flow rate: 13.2lpm (3..5gpm), can be adjusted from 3.0-13.2lpm (0.8) as required.
• Max Pressure: 60psi (4.2bar), can be adjusted from 10psi (0.7bar) to 60psi (4.2bar) as required.

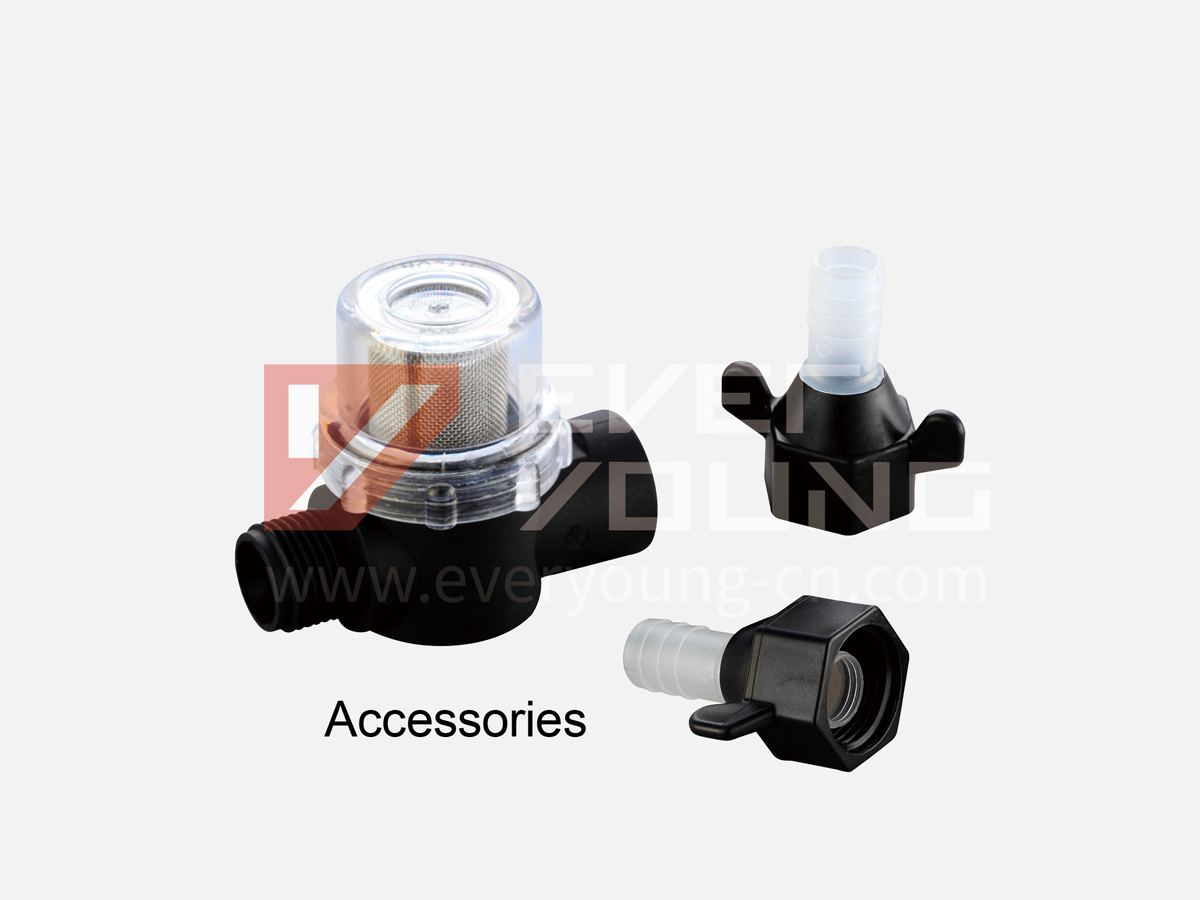

• SFS51-01inlet strainer for your choice. Inlet/Outlet fitting: 13mm pyramid hose barb, 1/2 NPT thread fitting for your choice.
• Protection: pressure switch protection: pressure-off protection or circumfluence switch protection. For the powered control you can choose pump without pressure protection.
• Duty Cycle: Intermittent (under different pressure the continuous working time will also be different)
-
Model
Volt
Flow
(Ipm/gpm)
Pressure off
(psi/bar)
Amp draw
(A)
Max draw
(A)
Packing size
(mm)
N.W/G.W
(kg)
YPUMP-DP3312
12V
13.2/3.5
45/3.1
3.5
7.0
260*140*125
1.8/2.1
YPUMP-DP3324
24V
13.2/3.5
45/3.1
1.8
4.0
260*140*125
1.8/2.1
Electric sprayer pumps feature durable, thermally protected motors and a sealless design that helps eliminate troublesome shaft seals and potential leakage into the motor. industrial and agricultural sprayer pumps to help apply insecticides and herbicides, pumps designed for carpet cleaning sprayers and more.
Rely on EVERYOUNG when you need the power and protection of high-quality electric sprayer pumps.
WATER PRESSURE SYSTEM PUMP
Applicalion:
• Yacht / RV/Caravan pressurized water system,
• Sprayer fixtures (Vehicle-mounted sprayers, electric sprayer)
• Clean machine, Humidifier, Water purification, Medical apparatus
• Food beverage filling & liquid transfer,
• Any other pressurization system
Functions:
• Motor Voltage: 12/24V DC
• Max Flow rate: 13.2lpm (3..5gpm), can be adjusted from 3.0-13.2lpm (0.8) as required.
• Max Pressure: 60psi (4.2bar), can be adjusted from 10psi (0.7bar) to 60psi (4.2bar) as required.
• SFS51-01inlet strainer for your choice. Inlet/Outlet fitting: 13mm pyramid hose barb, 1/2 NPT thread fitting for your choice.
• Protection: pressure switch protection: pressure-off protection or circumfluence switch protection. For the powered control you can choose pump without pressure protection.
• Duty Cycle: Intermittent (under different pressure the continuous working time will also be different)
